업체정보
업체로고
업체명
(국문) (주)조인에프에스
(en) JOINFS CO., LTD.
홈페이지
http://www.joinfs.com
소개
(국문) 당사는 연구개발 및 인력양성을 위해 지속적으로 노력하고 있으며, 축적된 기술과 풍부한 건설 경험을 바탕으로 전기건설 분야의 선도기업으로 위상을 높이고 있습니다.
(en) Our company is continuously striving to develop R&D and nurture human resources, and is raising its status as a leading company in the field of electricity construction based on accumulated technology and abundant construction experience.

출품제품정보
제품사진
제품

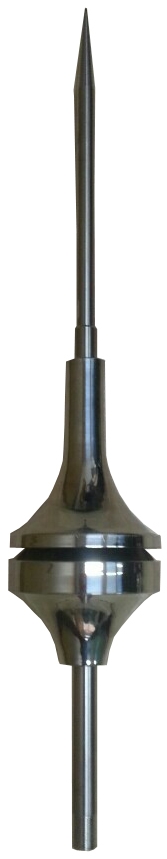

Wide-area lightning rod JLR/ESE-1000

This design method reduces the contact time between the Upward Streamer and the Downward Leader(Dart Leader) from the thundercloud. so It protects a wider range than general lightning protection system. It is used according to French Standard 17-102. Unlike the CV method, the protection range is set by the gain distance of the early streamer emission and the lightning distance by the rotating sphere without consideration of the field concentration factor of the ground due to lightning. But, because the rolling sphere method is applied, it can be applied up to a maximum height of 60m.

제품사진
제품

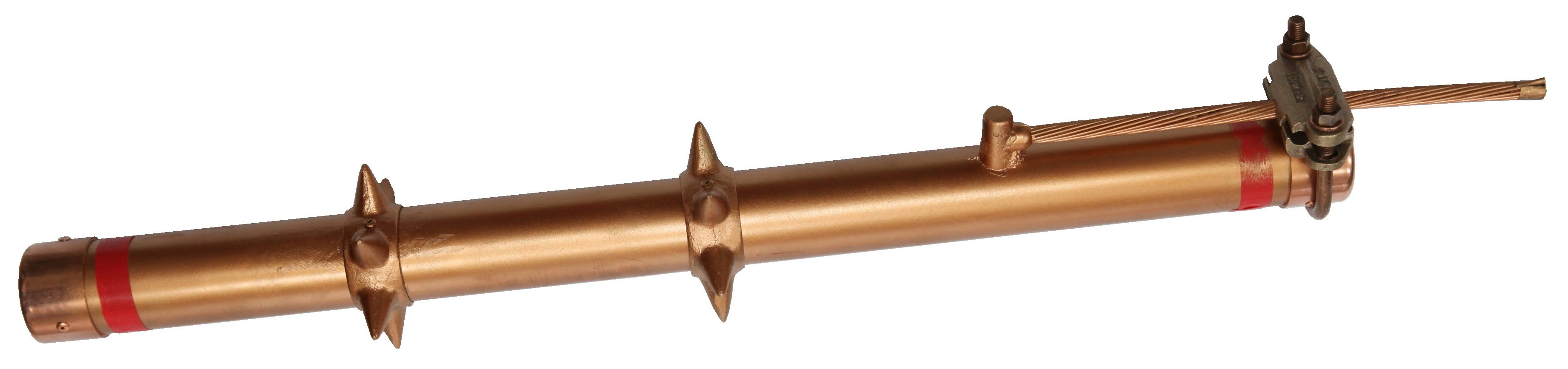

Chemical ground electrode (Chem-Rod)

Chem-Rod Grounding System is the most efficient system that maintains low grounding resistance for more than 30 years regardless of ground soil type, geological structure, soil composition, moisture content and seasonal temperature change. Chem-Rod Grounding System uses the grounding method using the “Highly conductive ground rod of strong alkaline electrolytes”, and it is a new grounding method developed to satisfy the modernization of highly integrated computation and communication service and high reliability operation quality. It is particularly well suited for system that require extremely stable grounding performance, such as computational or telecom grounding, as well as grounding systems that provide the best solution for that are difficult to obtain low ground resistance for rock or soil layers.
